3.2 mm 110 V AC 1/8 " RCA3D Goyen Diaphragm Valves IP67 Waterproof Enclosure

Name: 32 mm 110 V AC 18 quot RCA3D Goyen Diaphragm Valves IP67 Waterproof Enclosure
Brand: GOYEN or OEM
Price: 12 USD

Buy cheap 3.2 mm 110 V AC 1/8 " RCA3D Goyen Diaphragm Valves IP67 Waterproof Enclosure product

Brand Name : GOYEN or OEM

Model Number : RCA3D

Certification : CE ISO9001

Place of Origin : China

MOQ : 5 pieces

Price : USD 12- 21 Per piece

Payment Terms : Western Union, T/T, L/C,Paypal,Credit card

Supply Ability : 1000 pieces per 10 working days

Packaging Details : Plastic bags, boxes, cartons, Pallets or As customer's requirement

Body : Aluminum

Core and Plugnut : Stainless steel

Core Spring : Stainless steel

Working Pressure : 0.35-0.85Mpa

Sealing & disc : CR (chloroprene)

Clip : Mild steel (plated)

Contact Now

Goyen Aluminum pilot valve 3.2 mm 110 V AC 1/8 " RCA3D pulse jet valve

Suitable for
AII Goyen dust collector diaphragm valves.

Installation
1. Prepare pilot mounting hole in panel to
019.3/19.4 (0.760"). Panel thickness must exceed 1 .5mm (0.062").
2. Ensure o-ring is in place before tightening locknut. Preferably install pilot valves with solenoid on top.
3. For reliable operation ensure supply voltage is within -10% and +15% of rated solenoid voltage. Replace components within 1 million cycles (refer to Spare Parts)

Option:

1	Waterproof enclosure with embedded screw terminal coil according to protection class IP67, CEE 10
2	Explosionproof solenoids for hazardous locations according to “ATEX” (CENELEC) and national standards
3	Explosionproof and watertight solenoids according to “NEMA” standards
4	Hose connection executions (3" only)
5	Compliance with “UL” standards
6	Plug with visual indication and/or peak voltage suppression
7	Electronic timer
8	Valves can also be supplied with FPM (fluorelastomer) diaphragms and seals. Use the appropriate suffix letter for identification

Construction:

Body	Aluminium (diecast)
Ferrule	304 SS
Armature	430FR SS
Seals	Nitrile or Viton (reinforced)
Spring	304 SS
Screws	302 SS
Clip	Mild steel (plated)
Locknut	Mild steel zinc passivated
Voltage	DC: 24V, AC: 24V,48V,110V,230V
Working Temperature	- 20 to + 85 ℃
Protection Class	IP65
Coil Insulation Class	F
Working Pressure	0.35-0.85Mpa

Directions:

1	For compression fitting types tightness is achieved by the compressed gasket on the blow tube
2	Other pipe threads are available on request
3	Installation/maintenance instructions are included with each valve
4	Spare parts kit and replacement coils are available
5	Prepare supply and blowtube pipes to suit valve specification. Avoid installing valves underneath the tank.
6	Ensure tank and pipes are free from dirt, rust or other particulate.
7	Ensure supply air is clean and dry.
8	Mount valves to inlet pipes and blowtube to valves, ensuring no excess thread sealant can enter the valve itself.
9	Apply moderate pressure to system and check for installation leaks.
10	Fully pressurise system.
11	Test fire and listen for proper actuation and crisp pulse noise.

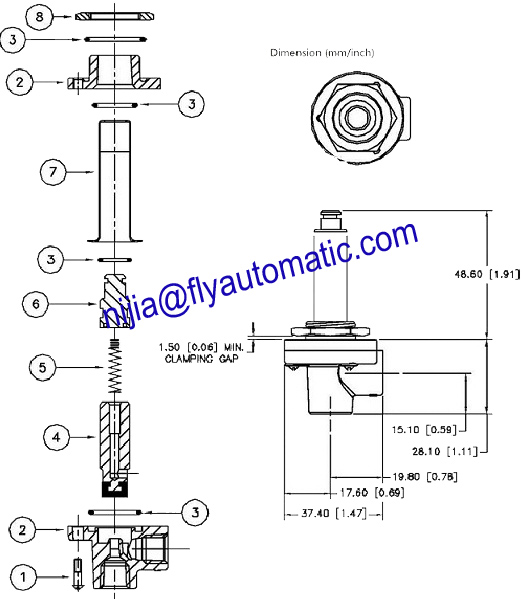

DIMENSIONS (mm):

Operation:
Recommended on time range: 50-500ms
Recommended time: between pulses: 1 minute or greater

Spare Parts:

K0380 Replacement seal armature spring & ferrule kit.

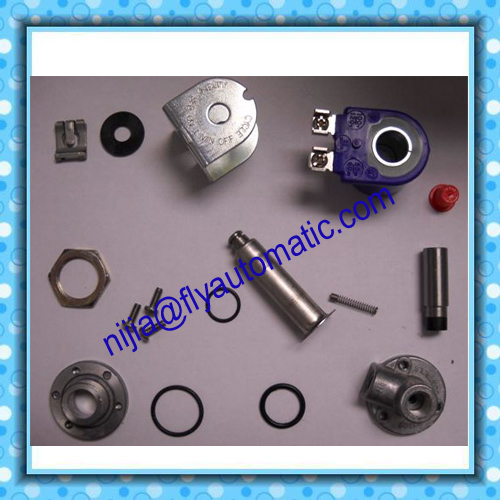

Product show:

3.2 mm 110 V AC 1/8 " RCA3D Goyen Diaphragm Valves IP67 Waterproof Enclosure
